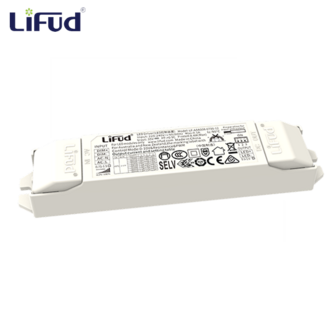

Lifud driver | Constant Current | Compact Dimmable | Dip Switch | 8W | 220-240V | 9-42V
In de bijlage vindt u uitgebreide informatie over deze driver van Lifud.
LED Flatlight: If you compare our LED Products to traditional lighting you will see that our lighting radiates less heat and has a much longer life span and a very low maintenance cost. Our products are made of quality parts and have a high energy saving level. We think quality is very important so we always make sure our products are tested and have the right certificates.
Type |
Comp Dim. Dip Switch IP20 |
Model |
LF-AAA008 100-350mA |
Max Output |
8W |
Dim. Functions |
0-10V+PWM+Rx |
Input Voltage |
220-240V |
Output Voltage |
9-42V |
Output Current |
100-350mA (Dip switch) |
Efficiency (Typical) |
76%(230Vac) |
PF (Typical) |
0.93(230Vac) |
Working Temp. |
-30℃~+45℃ |
Dimensions |
141*30*21 mm |
Certificates |
ENEC, CE, CB, RCM, SAA, CCC |
Warranty |
5 Years |
|
|
|
|
|
|
|
|
|
|
